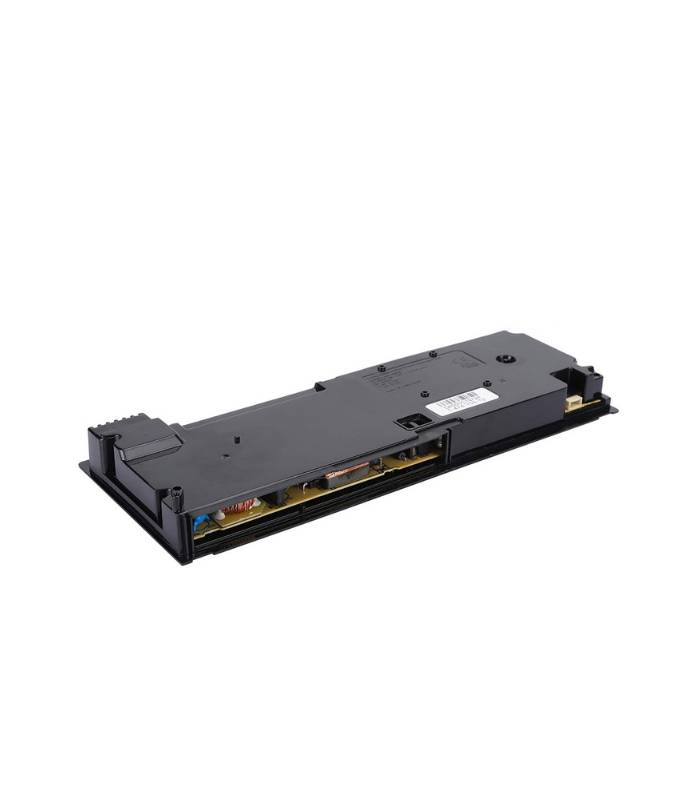

PS4 Slim 2000 (ADP-160CR) Console Power Supply Adapter

PS4 Slim 2000 (ADP-160CR) Power Supply Adapter Description

The ADP-160CR is the internal power supply adapter used in the PS4 Slim 2000 series (CUH-20XX models). This adapter converts AC power from a wall outlet into the 12V DC power required for the console’s internal components.

Technical Specifications:

• Model Number: ADP-160CR

• Console Compatibility: PS4 Slim (CUH-20XX series)

• Input Voltage: 100-240V AC, 50/60Hz (Supports universal voltage)

• Output Voltage: 12V DC

• Power Output: 160W

• Connector Type: Proprietary PS4 Slim power supply connector

• Design: Internal power adapter unit

Key Features:

Compact & Lightweight: Designed for the PS4 Slim chassis, making it smaller and more efficient.
Energy-Efficient: Consumes less power compared to the original PS4 (Fat model).
Improved Heat Dissipation: Operates with lower heat output, reducing fan noise and improving longevity.
Universal Voltage Support: Works worldwide without the need for a voltage converter.
Stable Power Delivery: Ensures smooth performance for gaming, preventing power fluctuations.

Replacement & Compatibility:

• If your PS4 Slim (CUH-20XX) has power issues, you can replace the ADP-160CR with an identical or compatible unit.

• Ensure you purchase a genuine or high-quality aftermarket PSU to avoid damage to your console.

How to Replace the PS4 Slim 2000 (ADP-160CR) Power Supply Adapter

If your PS4 Slim (CUH-20XX) is not turning on, shutting down unexpectedly, or has a faulty power supply, you may need to replace the power supply unit (PSU). Follow these steps carefully.

⚡ Required Tools & Parts:

✅ Replacement Power Supply: ADP-160CR (Make sure it’s compatible)
✅ Torx T8 / T9 Security Screwdriver
✅ Phillips #1 Screwdriver
✅ Plastic Pry Tool or Spudger (to remove the case)

🛠 Step-by-Step Replacement Guide

Step 1: Turn Off and Unplug the Console

1. Completely power off the PS4 Slim.

2. Unplug the power cord, HDMI cable, and any other connected devices.

Step 2: Remove the Bottom Cover

1. Flip the PS4 Slim upside down.

2. Use a plastic pry tool or your fingers to gently pop off the bottom cover.

3. Set the cover aside.

Step 3: Unscrew the Power Supply (ADP-160CR)

1. Locate the ADP-160CR power supply unit (near the back of the console).

2. Use a Torx T8 / T9 screwdriver to remove the screws securing the PSU.

3. Carefully lift the PSU slightly—it is still connected by a power cable.

Step 4: Disconnect the Power Supply Cable

1. Gently pull out the power connector from the PSU.

2. Lift and remove the ADP-160CR power supply unit from the console.

Step 5: Install the New Power Supply

1. Take the replacement ADP-160CR PSU and align it properly inside the PS4 Slim.

2. Connect the power cable back into the new PSU.

3. Secure the PSU in place by tightening the screws.

Step 6: Reassemble the Console

1. Snap the bottom cover back onto the console.

2. Reconnect the power cable, HDMI cable, and controllers.

3. Power on the PS4 Slim and test if it works properly.

🚀 Final Checks

✅ PS4 Turns On Successfully? 🎮 You’re good to go!
❌ Still Not Working? Check if the power cable or the new PSU is faulty.
