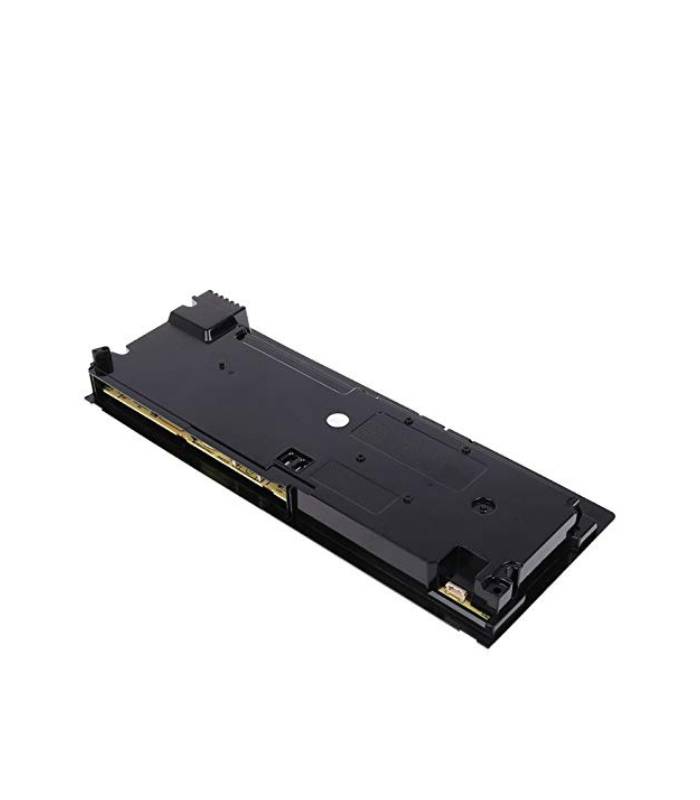

PS4 Slim 2000 (ADP-160ER) Console Power Supply Adapter

PS4 Slim 2000 (ADP-160ER) Power Supply Adapter Description

The ADP-160ER is an internal power supply adapter designed for the PS4 Slim 2000 series (CUH-20XX models). It provides stable power delivery for the console, ensuring smooth performance.

Technical Specifications:

• Model Number: ADP-160ER

• Console Compatibility: PS4 Slim (CUH-20XX series)

• Input Voltage: 100-240V AC, 50/60Hz (Universal voltage support)

• Output Voltage: 12V DC

• Power Output: 160W

• Connector Type: Proprietary PS4 Slim power connector

• Form Factor: Internal PSU unit

Key Features:

✅ Compact & Efficient Design: Smaller than previous PS4 power supplies.
✅ Energy-Efficient: Uses less power compared to earlier PS4 models.
✅ Improved Cooling: Generates less heat, reducing fan noise.
✅ Universal Voltage Support: Works in all regions without a converter.
✅ Stable Power Output: Ensures consistent performance for gaming.

Common Issues & Troubleshooting:

1️⃣ PS4 Slim Won’t Turn On
✔ Check power cable, wall outlet, and PSU fuse.

2️⃣ Random Shutdowns or Power Loss
✔ Ensure proper ventilation and check for overheating.

3️⃣ Burning Smell or Overheating PSU
✔ If the PSU is overheating, it may need replacement.

Replacement & Compatibility:

• If the ADP-160ER PSU is faulty, replace it with an identical unit or a compatible ADP-160CR PSU.

How to Replace the PS4 Slim 2000 (ADP-160ER) Power Supply Adapter

If your PS4 Slim (CUH-20XX series) is experiencing power issues (not turning on, shutting down randomly, or overheating), you may need to replace the power supply unit (PSU). Below is a step-by-step guide to safely replacing the ADP-160ER power supply.

Required Tools & Parts:

✅ Replacement PSU: ADP-160ER (or compatible ADP-160CR)
✅ Torx T8 / T9 Security Screwdriver
✅ Phillips #1 Screwdriver
✅ Plastic Pry Tool or Spudger (for opening the case)

Step-by-Step Replacement Guide

Step 1: Power Off & Unplug the Console

1. Completely power off the PS4 Slim.

2. Unplug all cables, including the power cord, HDMI, and controllers.

Step 2: Remove the Bottom Cover

1. Flip the PS4 Slim upside down.

2. Use a plastic pry tool to carefully pop off the bottom cover.

3. Set the cover aside.

Step 3: Unscrew the Power Supply Unit (PSU)

1. Locate the ADP-160ER power supply at the back of the console.

2. Use a Torx T8/T9 screwdriver to remove the screws securing the PSU.

3. Gently lift the PSU slightly—it is still connected to the motherboard.

Step 4: Disconnect the Power Supply Cable

1. Carefully pull out the power connector from the PSU.

2. Lift and remove the ADP-160ER PSU from the console.

Step 5: Install the New Power Supply

1. Take the replacement ADP-160ER PSU and position it properly inside the PS4 Slim.

2. Reconnect the power cable securely into the PSU.

3. Align the PSU in place and tighten the screws.

Step 6: Reassemble the Console

1. Snap the bottom cover back onto the console.

2. Reconnect the power cable, HDMI, and controllers.

3. Power on the PS4 Slim and check if it’s working properly.

✔ Final Checks

✅ PS4 Turns On Successfully? 🎮 You’re good to go!
❌ Still Not Working? Check if the power cable or replacement PSU is faulty.
