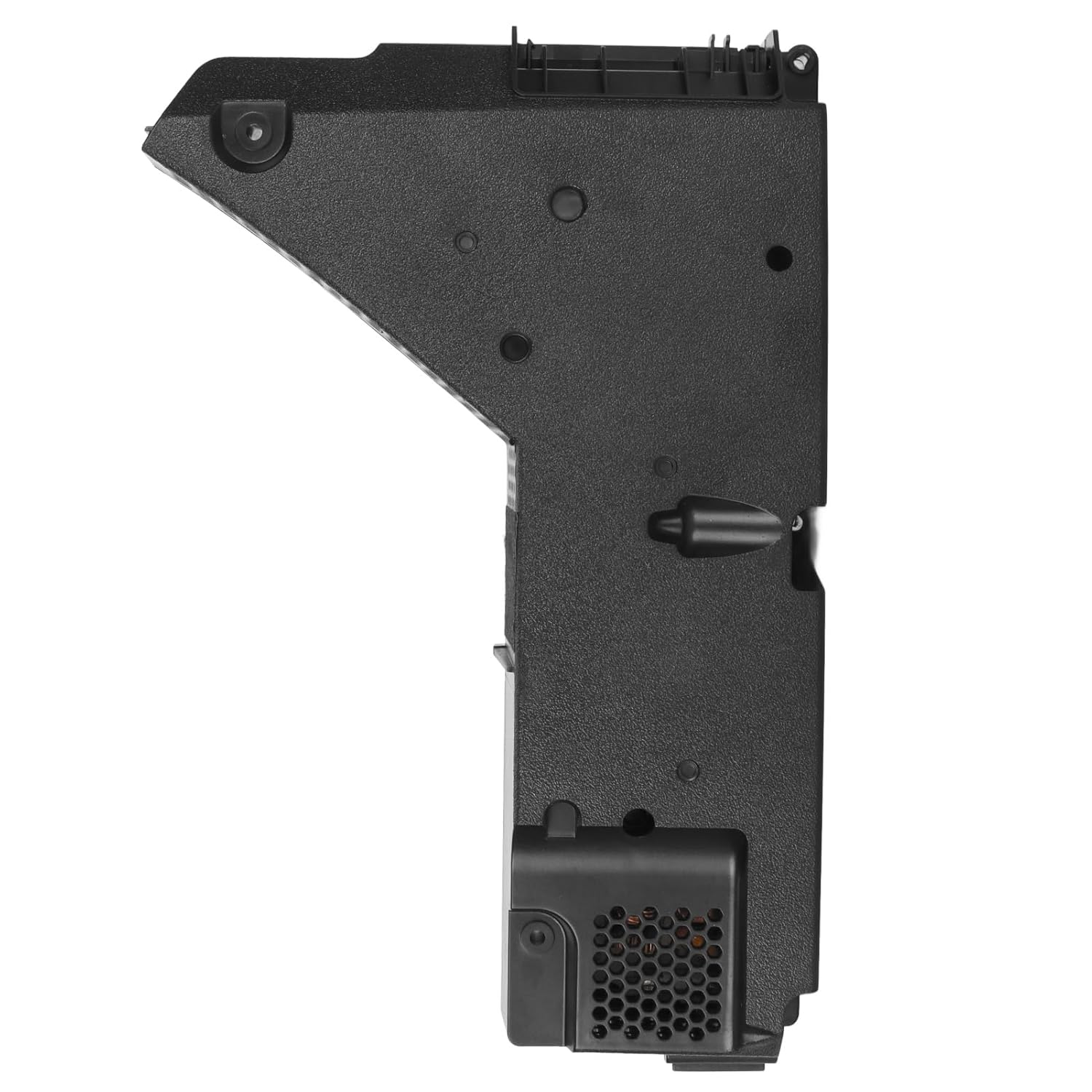

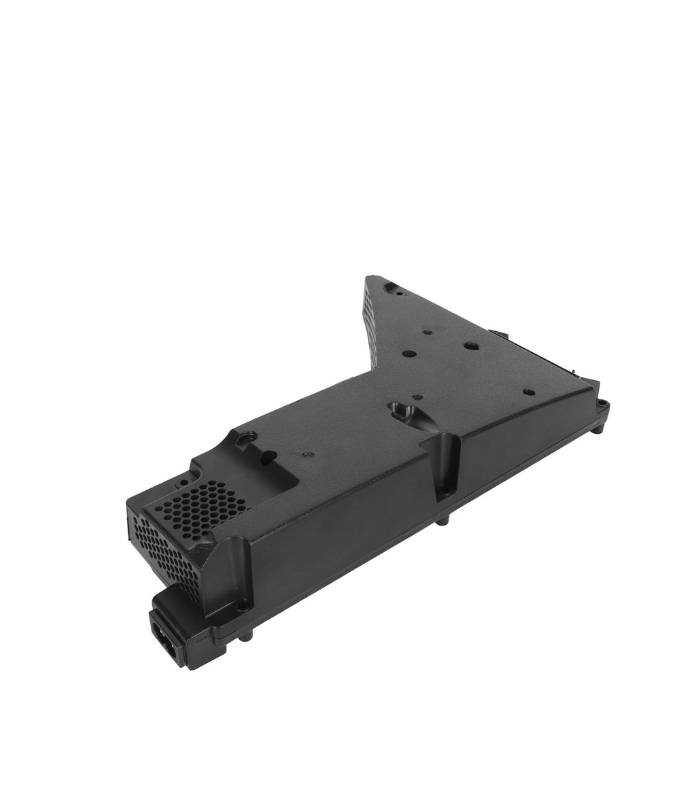

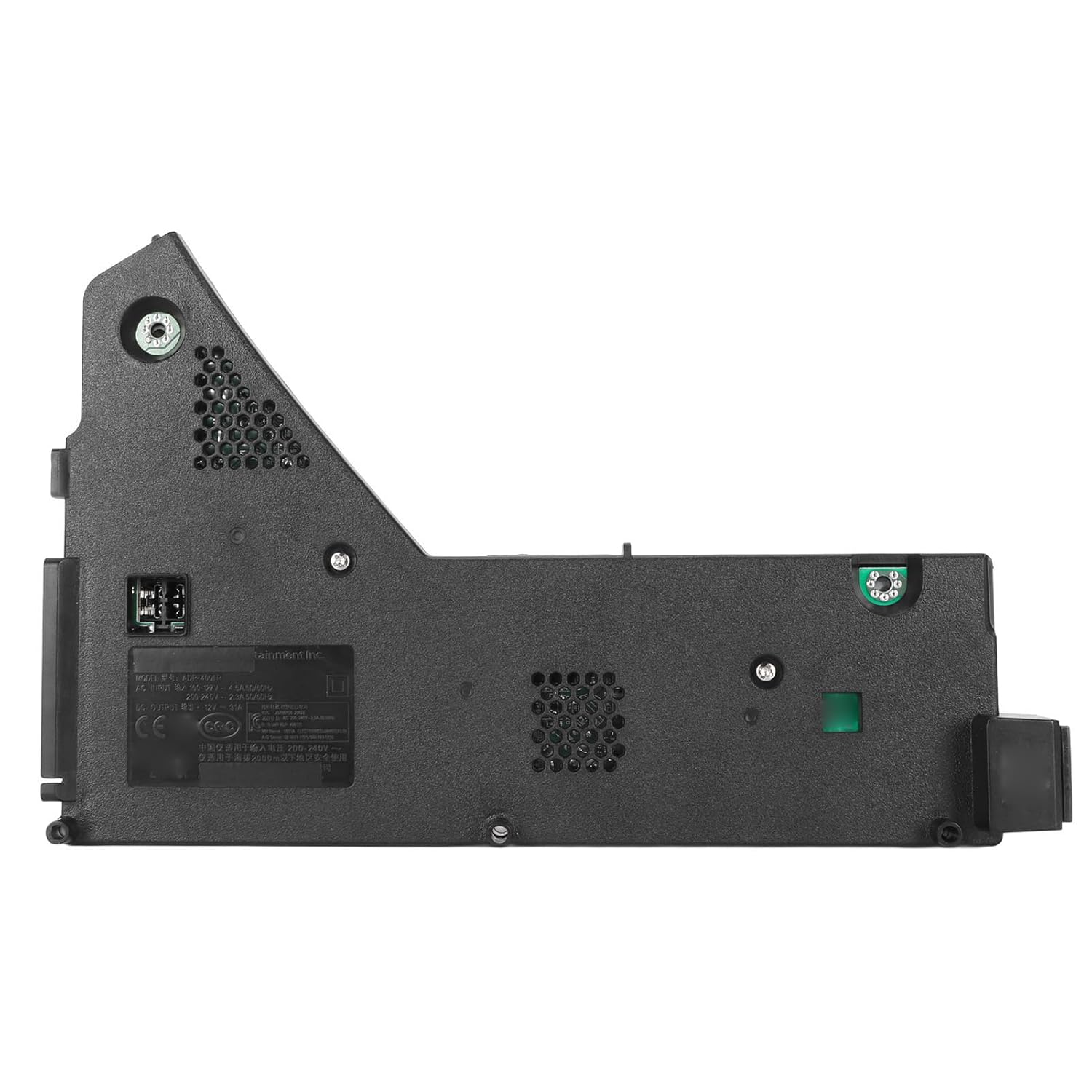

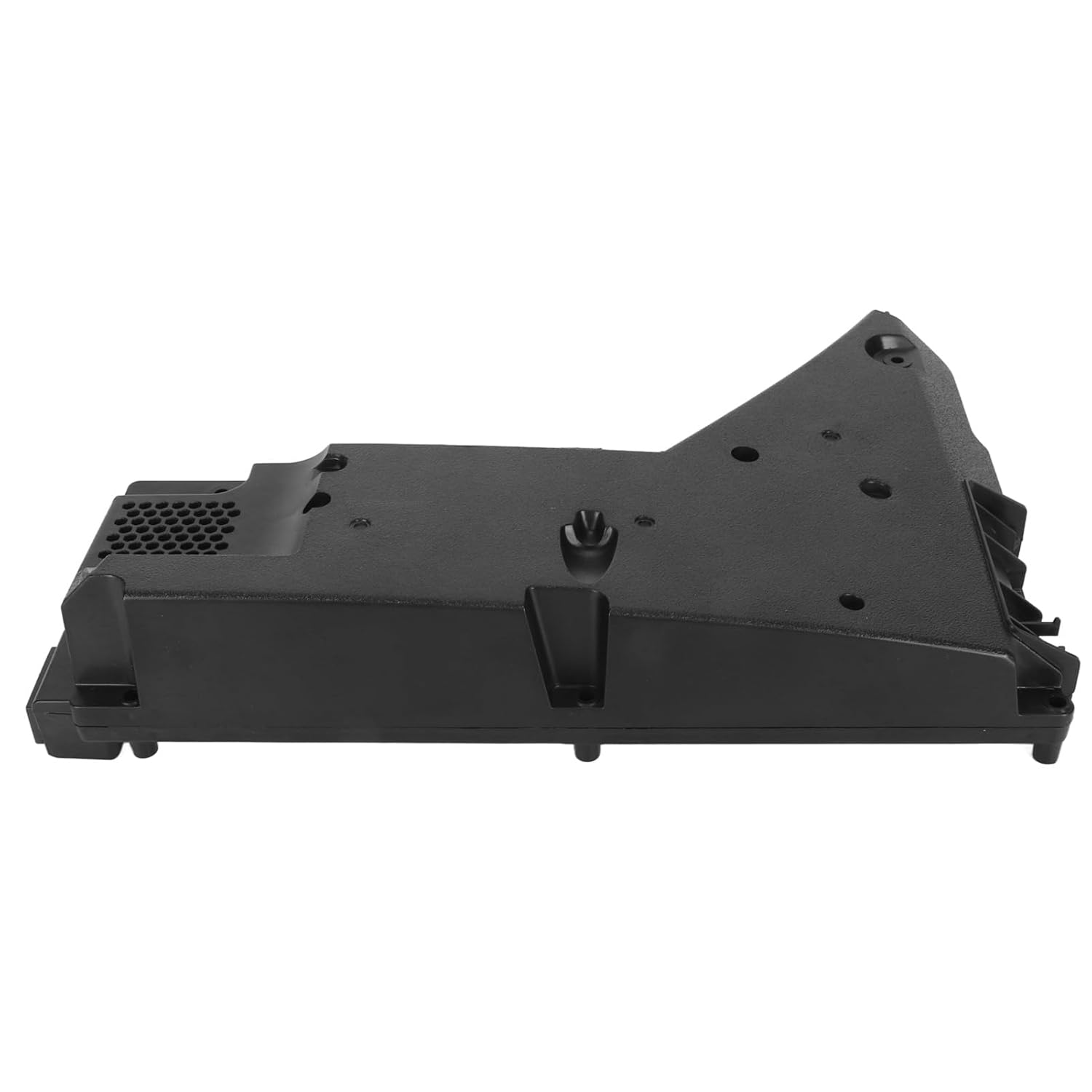

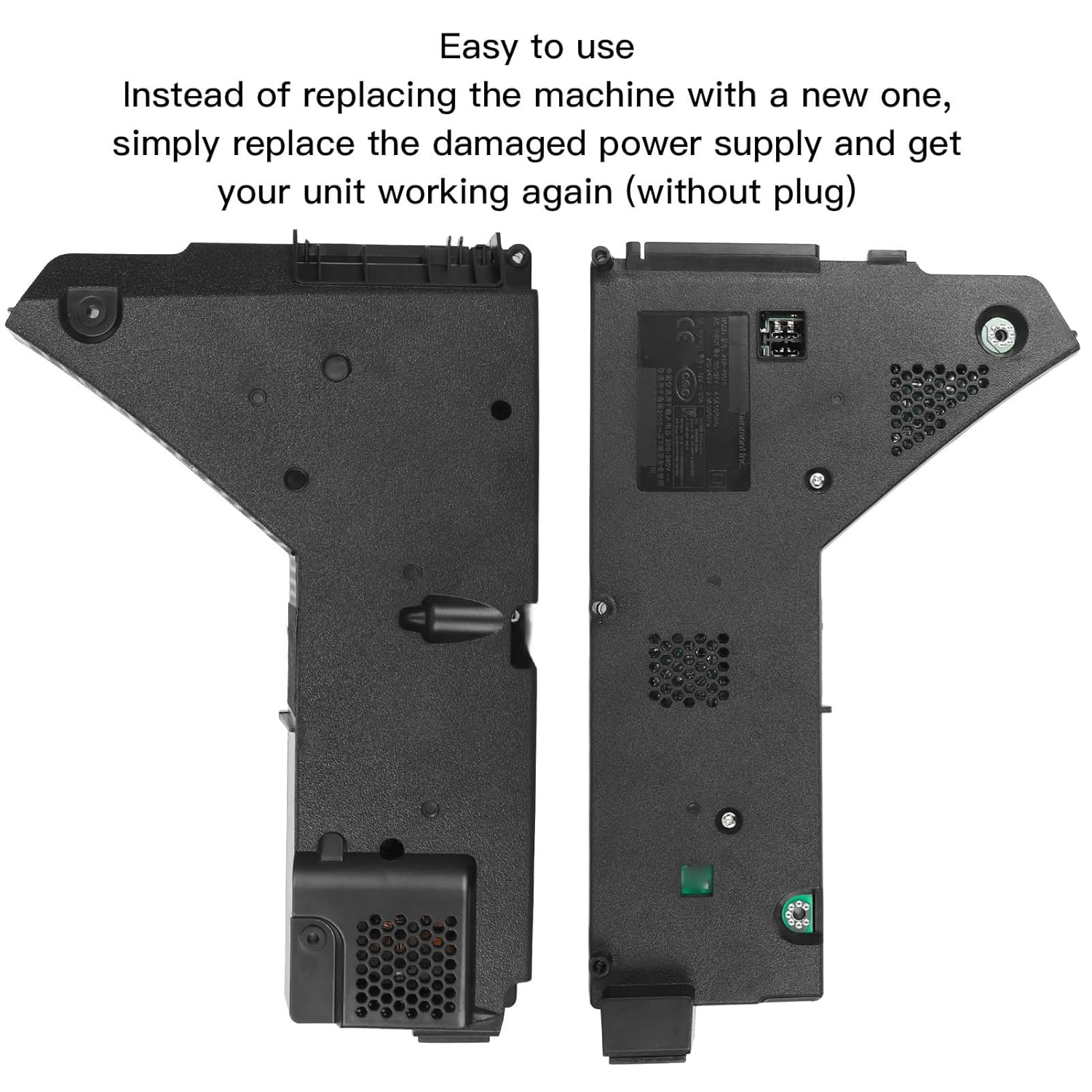

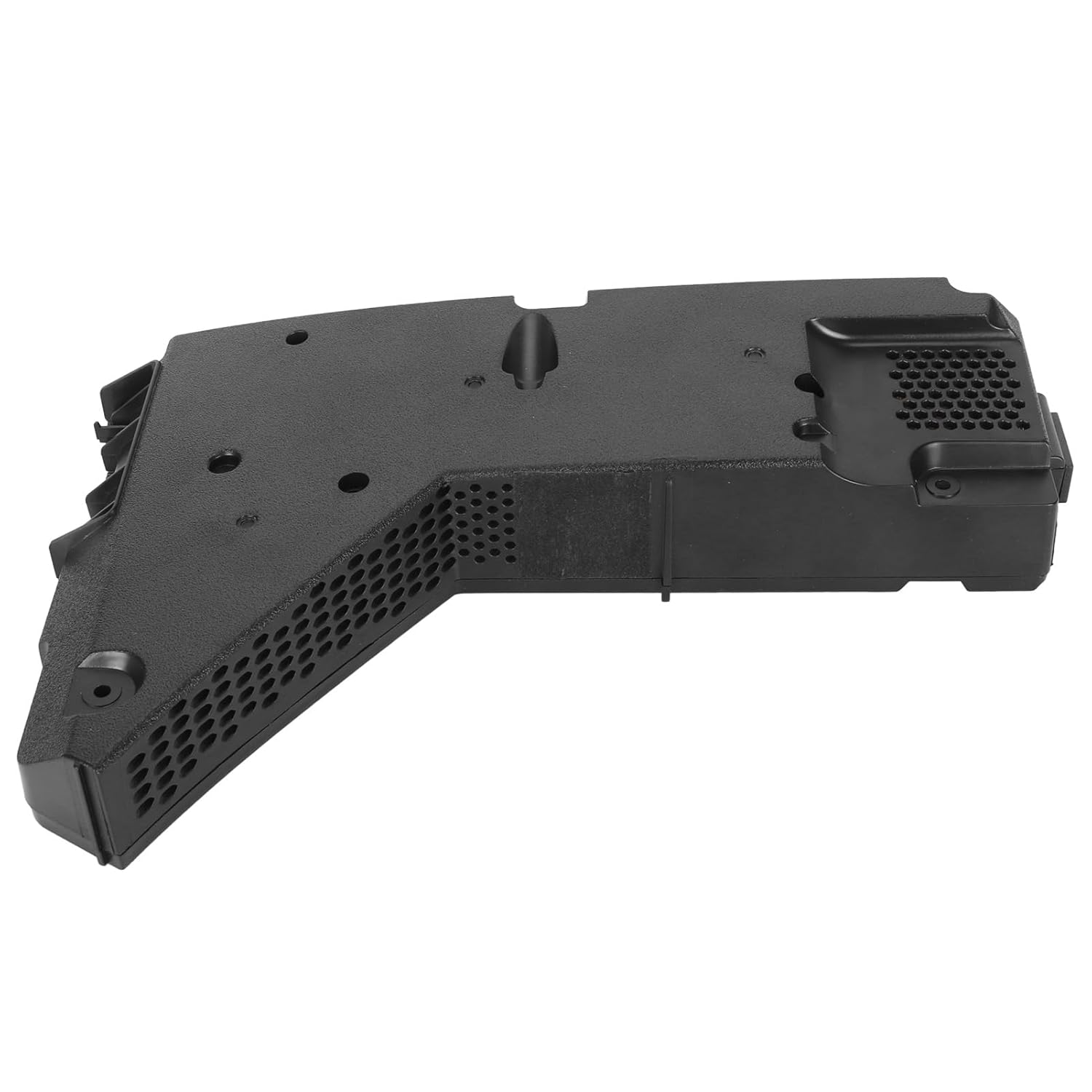

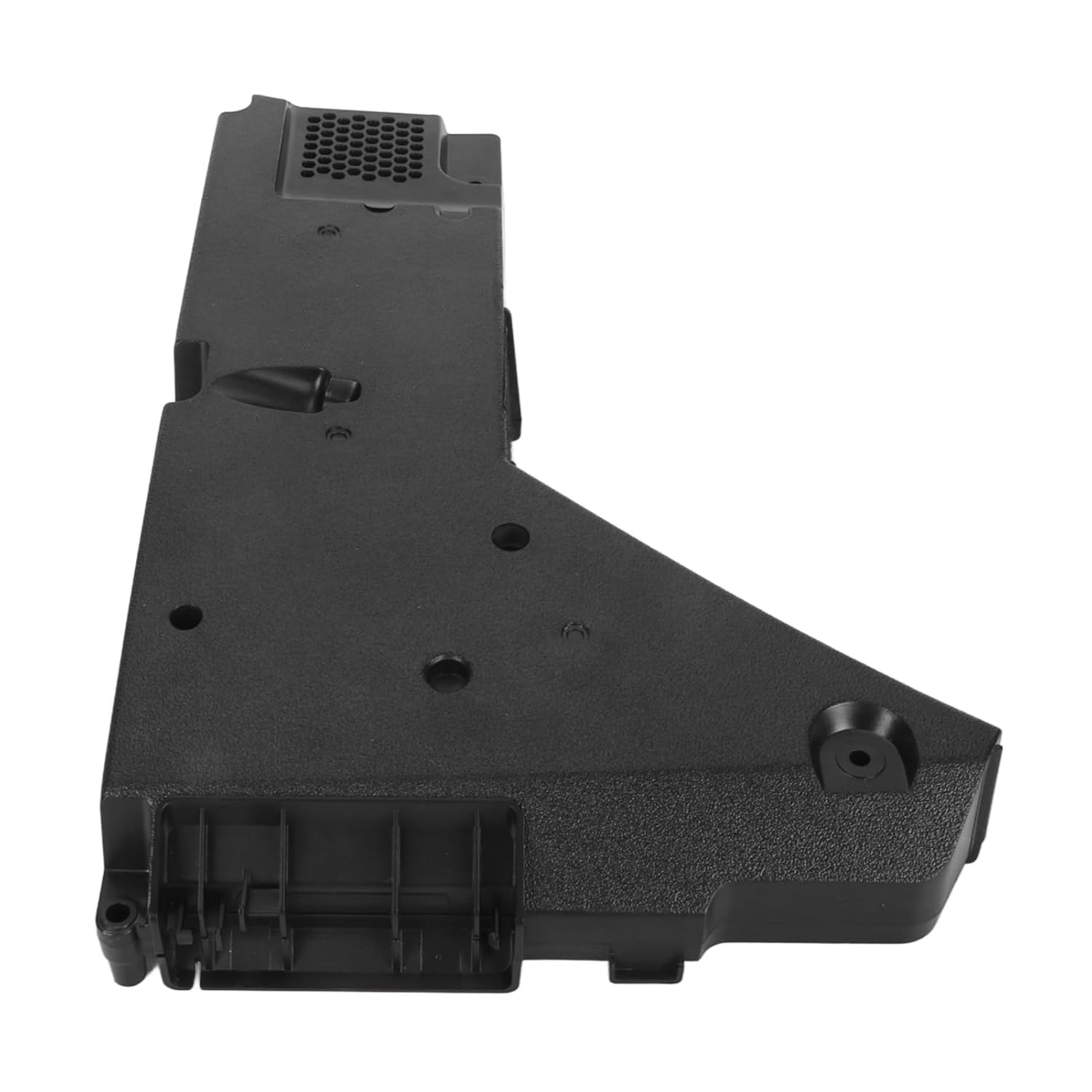

PS5 Internal Power Supply ADP-400FR PA-1401-JT3 – Compatible for CFI-1200 / 1215 Console (100‑127V / 200‑240V )

The PS5 Internal Power Supply ADP-400FR PA-1401-JT3 is a high-performance replacement module designed for the Sony PlayStation 5 CFI-1200 and CFI-1215 models. Engineered for reliability and durability, this professional-grade internal power supply unit restores your console’s power functionality and ensures a consistent gaming experience.

Fully compatible with global power standards, the unit supports input voltages of 100‑127V and 200‑240V, making it ideal for users across different regions. Whether your original PSU is failing, damaged, or inconsistent, the ADP-400FR delivers stable and regulated power to your PS5 console with enhanced thermal and circuit protection features.

Crafted with high-quality components, this power supply unit mirrors the performance of the original Sony PSU. It is ideal for professional technicians, repair centers, or experienced DIYers who want to extend the life of their PS5 console without compromising performance or safety.

Key Features

• Model: ADP-400FR (PA-1401-JT3)

• Compatibility: Fits PS5 Slim CFI-1200 and CFI-1215 console models

• Voltage Range: Supports 100‑127V / 200‑240V input for worldwide use

• Protection: Built-in over-voltage, over-current, and thermal protection

• Performance: OEM-level power regulation for consistent and safe performance

• Durability: Built using high-grade components for extended service life

• Installation: Designed as a direct replacement for the original internal PSU

Use Case

This replacement power supply is perfect for resolving the following issues:

• PS5 console not powering on

• Unexpected shutdowns or restarts

• Inconsistent power delivery or flickering screen

• Upgrading or restoring a previously damaged console

How to Use / Installation Instructions

Disclaimer: Internal PSU replacement should be performed by experienced users or professionals. Opening your PS5 console may void its warranty.

Required Tools:

• Anti-static wrist strap (recommended)

• Torx T8/T9 screwdriver

• Plastic prying tools

• Tweezers (optional)

Step-by-Step Installation Guide:

1. Power Off the Console

   • Unplug the PS5 from the wall outlet and remove all cables and accessories.

2. Prepare Your Work Area

   • Use a clean, flat, static-free surface. Wear an anti-static wrist strap to prevent component damage from static discharge.

3. Disassemble the Console

   • Gently remove the side panels of the PS5.

   • Unscrew and remove the internal covers and shielding using a Torx screwdriver.

   • Locate the internal power supply unit near the AC port.

4. Remove the Faulty PSU

   • Unplug the power connector from the motherboard carefully.

   • Remove the screws securing the power supply.

   • Take out the faulty ADP-400FR unit.

5. Install the New Power Supply

   • Align the new ADP-400FR PA-1401-JT3 unit in the original position.

   • Secure it with screws.

   • Reconnect the power cable to the motherboard.

6. Reassemble the Console

   • Reattach all shielding and outer panels securely.

   • Double-check all connections and ensure everything is firmly in place.

7. Power On and Test

   • Plug the power cable into the console and turn it on.

   • Confirm the system boots up normally without interruptions or shutdowns.

Maintenance Tips

• Use a surge protector to guard against voltage spikes.

• Ensure the console has adequate ventilation to prevent overheating.

• Periodically clean dust from console vents to maintain airflow.
