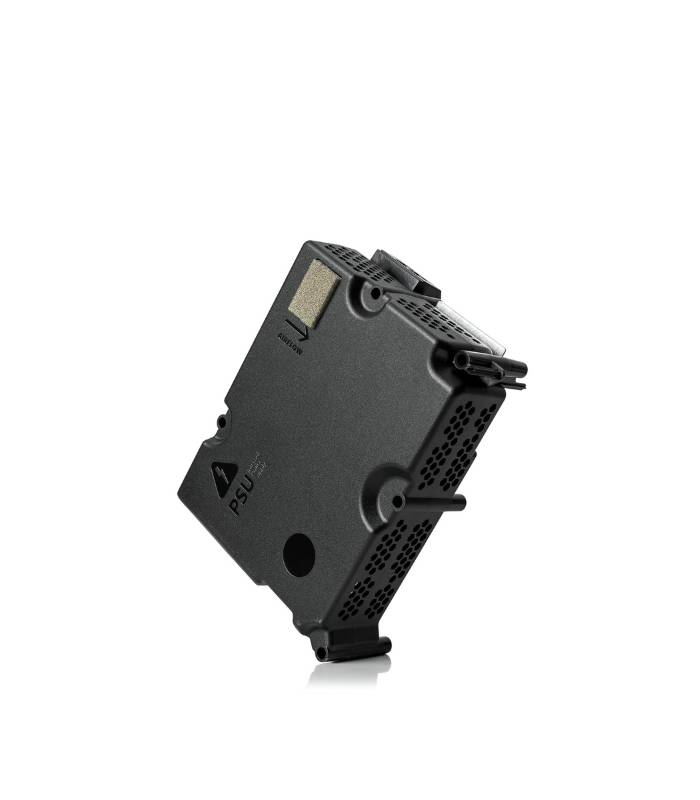

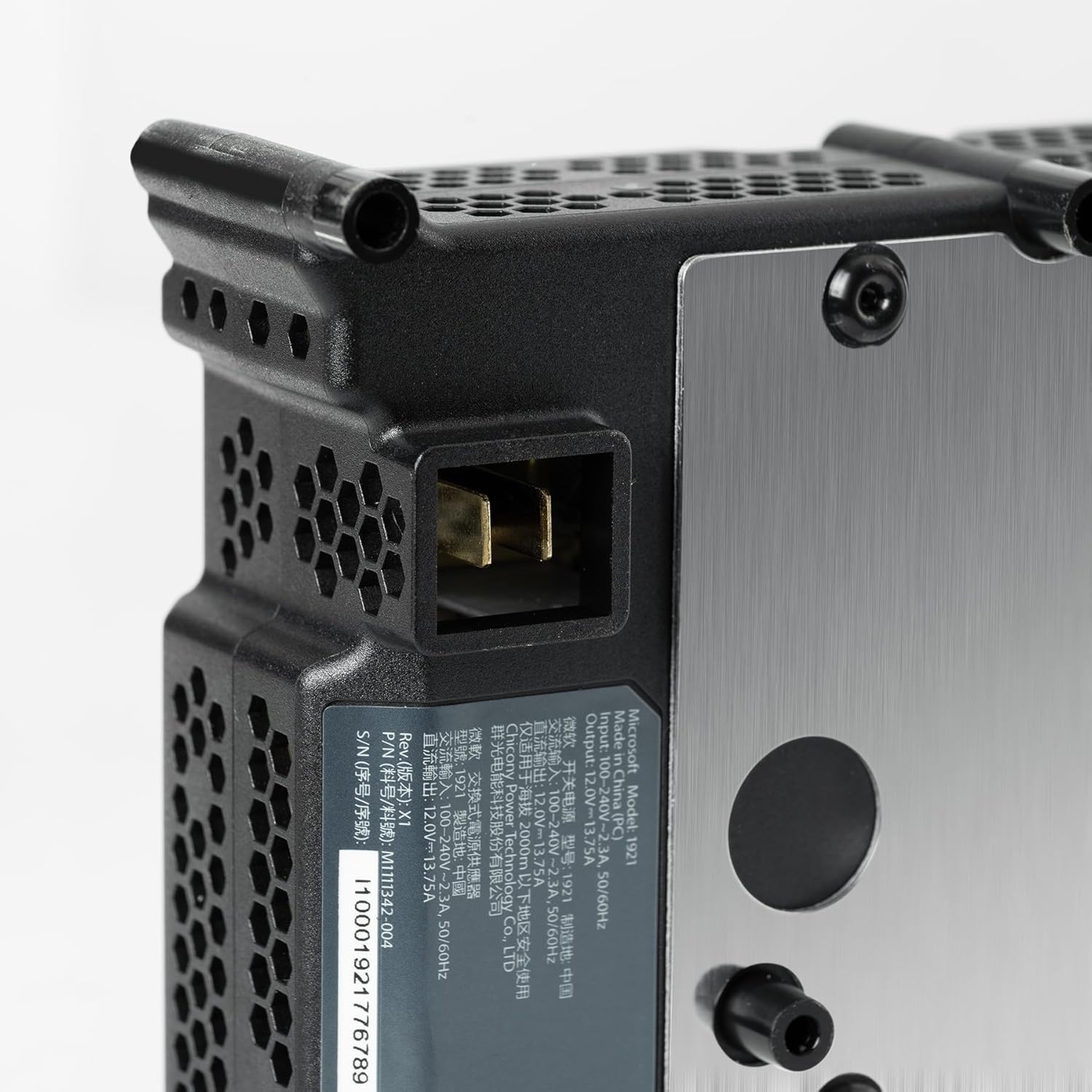

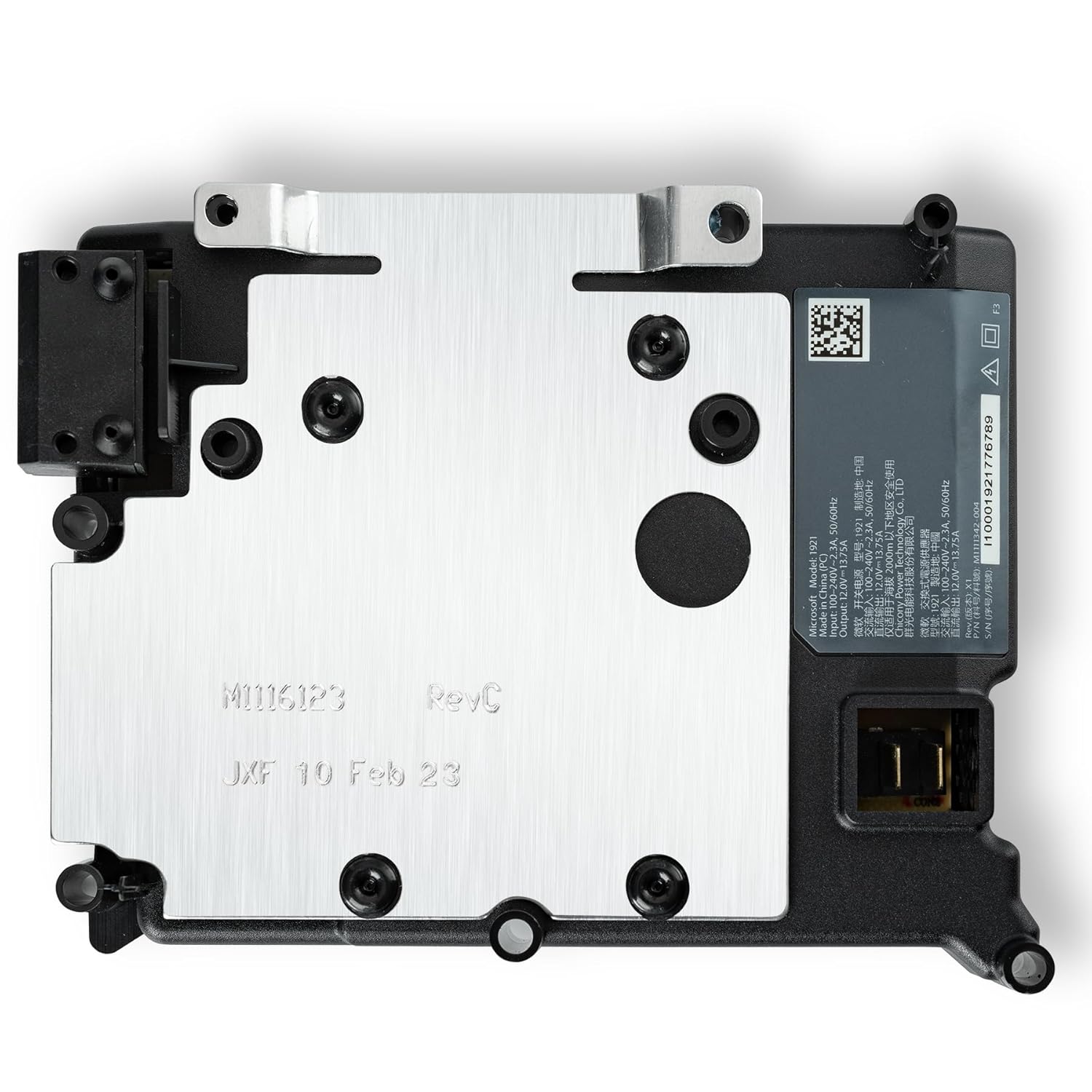

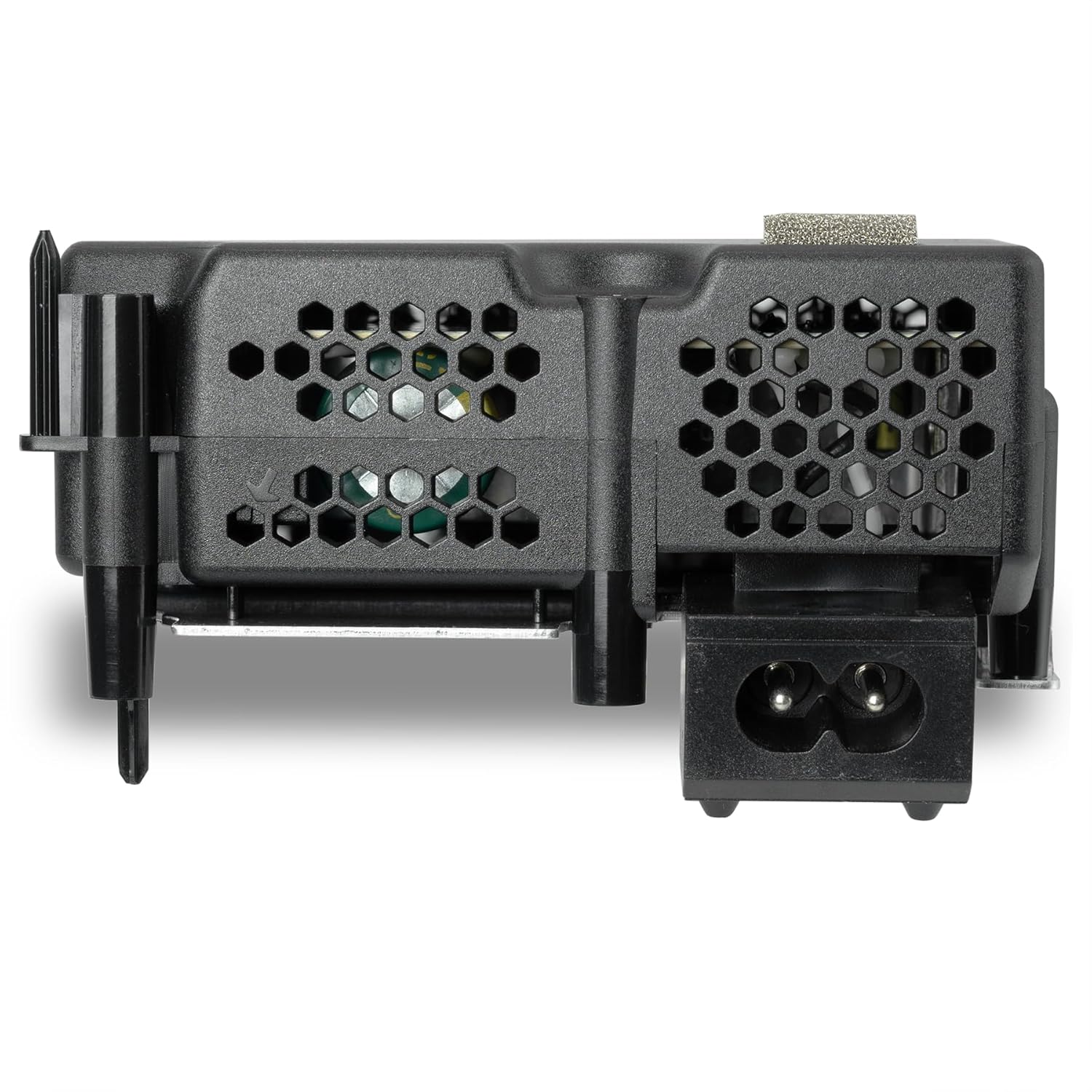

Xbox Series S Internal AC Power Supply Unit – Replacement Adapter with Power Cable

The Xbox Series S Internal AC Power Supply Unit is a high-performance replacement part designed specifically for the Xbox Series S console. If your console no longer powers on, randomly shuts down, or displays signs of power instability, this internal AC power supply unit offers a reliable and cost-effective solution. Built with quality components and engineered to match the exact specifications of the original factory unit, it ensures consistent power delivery, safe operation, and long-lasting durability.

Compatible with standard global voltages (100V-240V), this power supply is suitable for use in various countries and regions. Its built-in safety protection circuitry guards against short-circuiting, overheating, over-current, and over-voltage, helping to prevent damage to your console and maintain optimal performance. Whether you’re a casual gamer or a power user, this internal PSU ensures that your Xbox Series S performs reliably across long gaming sessions.

This power supply is an ideal choice for technicians, repair shops, or experienced gamers who are comfortable with console disassembly and hardware replacement. It restores your console to working condition without the need to replace the entire system.

Features

• Compatible with Xbox Series S console (not for Xbox Series X or Xbox One models)

• Internal AC adapter for direct hardware replacement

• Supports input voltage: 100V – 240V

• Provides stable and consistent power output

• Built-in protection from over-voltage, over-current, and overheating

• Easy to install with proper tools

• Includes a compatible power cord

How to Use

Note: Replacing the internal power supply requires opening the Xbox Series S console. If you are unfamiliar with console repairs, seek assistance from a professional technician.

Step-by-Step Installation Guide:

1. Power Off and Unplug the Console:
   Disconnect your Xbox Series S from all cables, including power and HDMI. Let the console sit for a few minutes to discharge any residual power.

2. Prepare the Tools:
   You will need a set of Torx screwdrivers (typically T8 and T10), a plastic prying tool, and a clean, static-free work surface.

3. Open the Console:
   Remove the side panels of the Xbox Series S carefully using a prying tool. Unscrew all the visible screws on the back and interior shielding to access the internal components.

4. Locate the Internal Power Supply:
   The power supply unit is typically located at one corner of the console, connected to the power socket and the mainboard.

5. Disconnect the Old Power Supply:
   Carefully unplug the power connector from the motherboard. Unscrew the power supply unit from the chassis and lift it out of the console.

6. Install the New Power Supply:
   Place the new internal AC power supply unit in the same location as the old one. Align it correctly and screw it in place. Reconnect the power cable to the motherboard securely.

7. Reassemble the Console:
   Reattach any internal shields, screw down the outer shell, and slide the panels back into place.

8. Reconnect and Test:
   Plug the power cord into the back of the console and connect it to a wall outlet. Press the power button to ensure that the Xbox Series S powers on and functions correctly.
